Vision-guided pick and place unit integrating a 6-axis robot with vibratory feeder for flexible part handling.

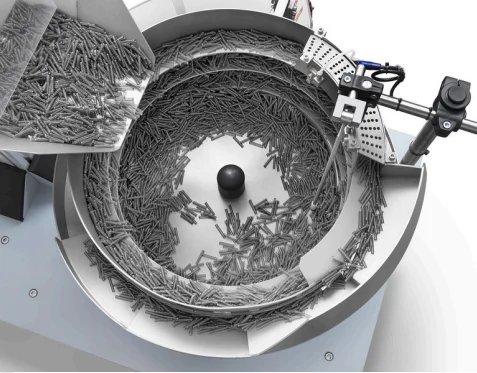

Our Pick & Place Robotic Integration Unit combines a Kalapremi vibratory bowl feeder with a 6-axis collaborative robot and 2D vision system. The vision system locates randomly oriented parts on the feeder belt and guides the robot to pick and place them with ±0.05 mm repeatability.
Robot Payload: 5–10 kg
Repeatability: ±0.05 mm
Vision: 2D colour camera
Cycle Time: 3–6 sec/part
Control: PLC + Safety PLC
Footprint: 1200 × 900 mm
Vision-guided picking Flexible part haRobot Payload: 5–10 kg
Repeatability: ±0.05 mm
Vision: 2D colour camera
Cycle Time: 3–6 sec/part
Control: PLC + Safety PLC
Footprint: 1200 × 900 mmndling Collaborative robot Safety-rated design
Electronics PCB handling
Automotive component sorting
Pharmaceutical blister packing
Food portion picking
